£102,670.00
CDX1000-50 bareshaft – 50Hz Std DIN flange

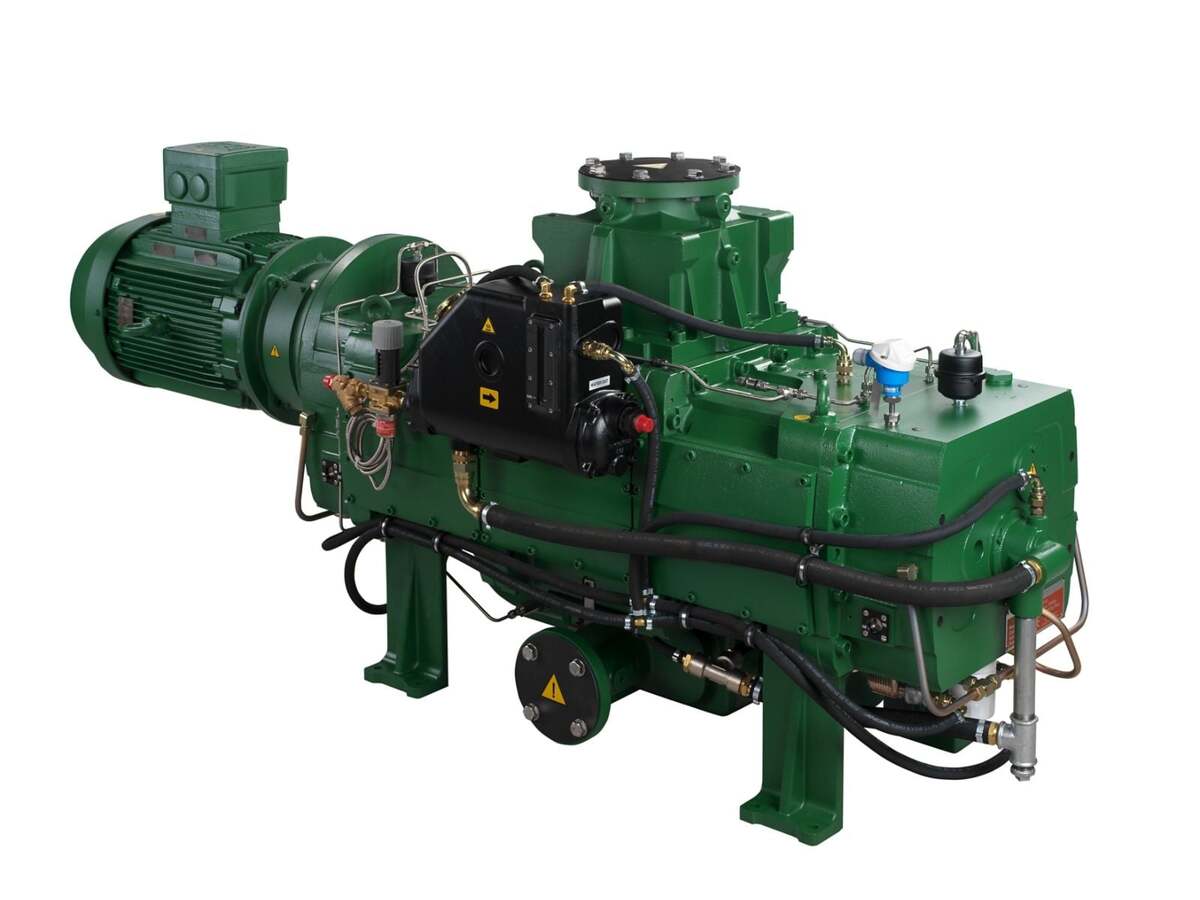

Very large industrial bareshaft dry screw pump supplied without motor. Pumping speed 800 m³/h, ultimate pressure 0.5 mbar. Water-cooled, IP54, ATEX certified, 82 dB(A), 1710 kg. SG iron body with PTFE and Viton seals. Connects via standard DIN flange.
| Brand | Edwards |
|---|---|
| Pump type | Dry screw pump |
| Variant | CDX1000 – Chemical Dry Screw Pump, Bareshaft without motor 50 Hz, ATEX, CDX1000 – Chemical Dry Screw Pump, Bareshaft without motor 60 Hz, ATEX |
| Cooling method | Water Cooling |
| Power supply voltage | Bareshaft without motor |
| Connection inlet/outlet flange | DN 150 / DN 80 |
