Description
Large self-contained vapour diffusion pump with integral cold cap and water-cooled baffle. Pumping speed 2000-2130 l/s, ultimate pressure 3×10⁻⁶ Pa. 2250 W, single-phase 110-250V, IP22, 46 kg.

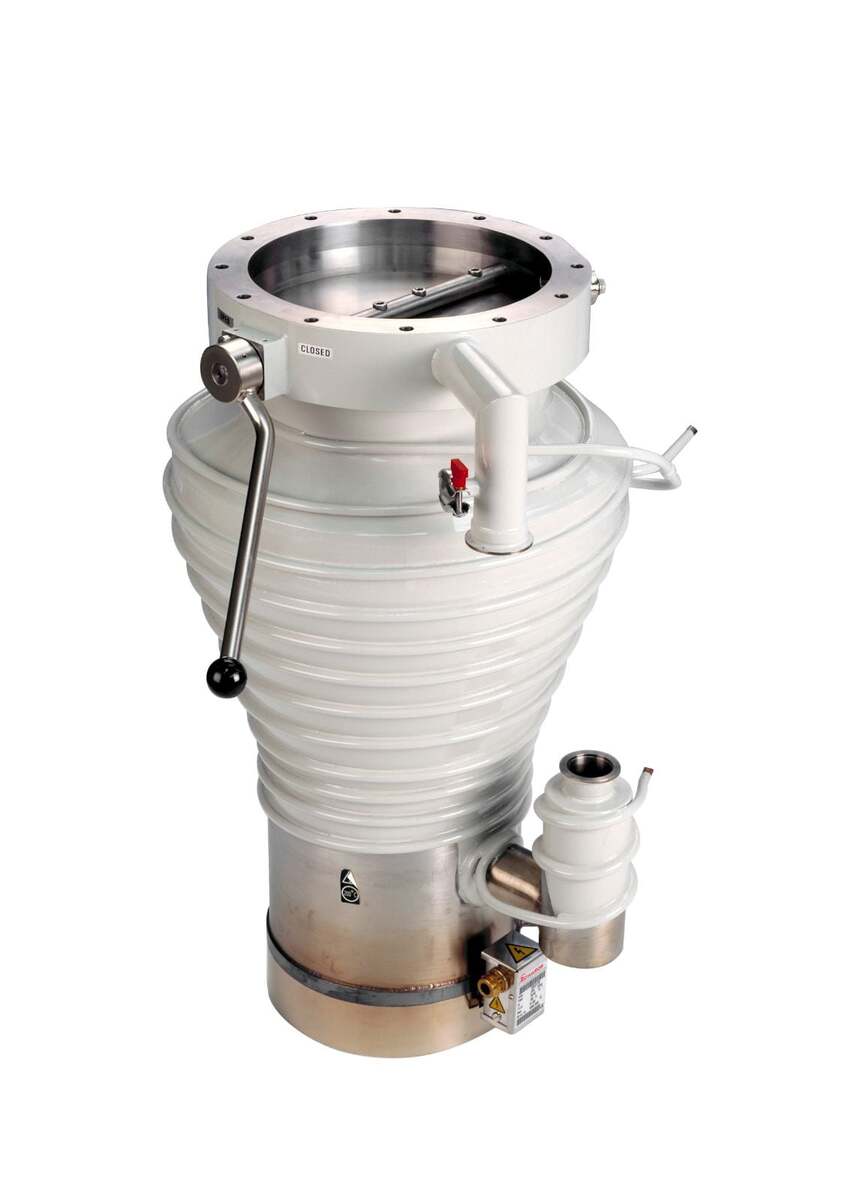

Edwards Diffstak 250/2000 Diffusion pump
Price range: £24,695.00 through £37,446.00
Diffstak 250/2000C – 230-250V 1-ph 50/60 Hz
Additional information
| Brand | Edwards |
|---|---|
| Pump type | Diffusion pump |
| Variant | Diffstak 250/2000 Diffusion Pump – 1Ph 230-250V 50/60Hz, C – Unvalved, Diffstak 250/2000 Diffusion Pump – 1Ph 230-250V 50/60Hz, P – Pneumatic Valve, Diffstak 250/2000 Diffusion Pump – 1Ph 230-250V 50/60Hz, M – Manual Valve, Diffstak 250/2000 Diffusion Pump – 1Ph 210-225V 50/60Hz, M – Manual Valve, Diffstak 250/2000 Diffusion Pump – 1Ph 110-125V 50/60Hz, M – Manual Valve, Diffstak 250/2000 Diffusion Pump – 1Ph 210-225V 50/60Hz, P – Pneumatic Valve, Diffstak 250/2000 Diffusion Pump – 1Ph 110-125V 50/60Hz, C – Unvalved, Diffstak 250/2000 Diffusion Pump – 1Ph 210-225V 50/60Hz, C – Unvalved, Diffstak 250/2000 Diffusion Pump – 1Ph 110-125V 50/60Hz, P – Pneumatic Valve |
| Cooling method | Water Cooling |
| Power supply voltage | 1Ph 230-250V 50/60Hz, 1Ph 210-225V 50/60Hz, 1Ph 110-125V 50/60Hz |
| Connection inlet/outlet flange | DN 250 ISO-K / DN 40 ISO-KF (NW40) |
