Description
Two-stage oil rotary vane pump. Pumping speed 1.5 m³/h, ultimate pressure 0.3 Pa. Air-cooled (fan), IP44, 55 dB(A), 10 kg. Single-phase supply.

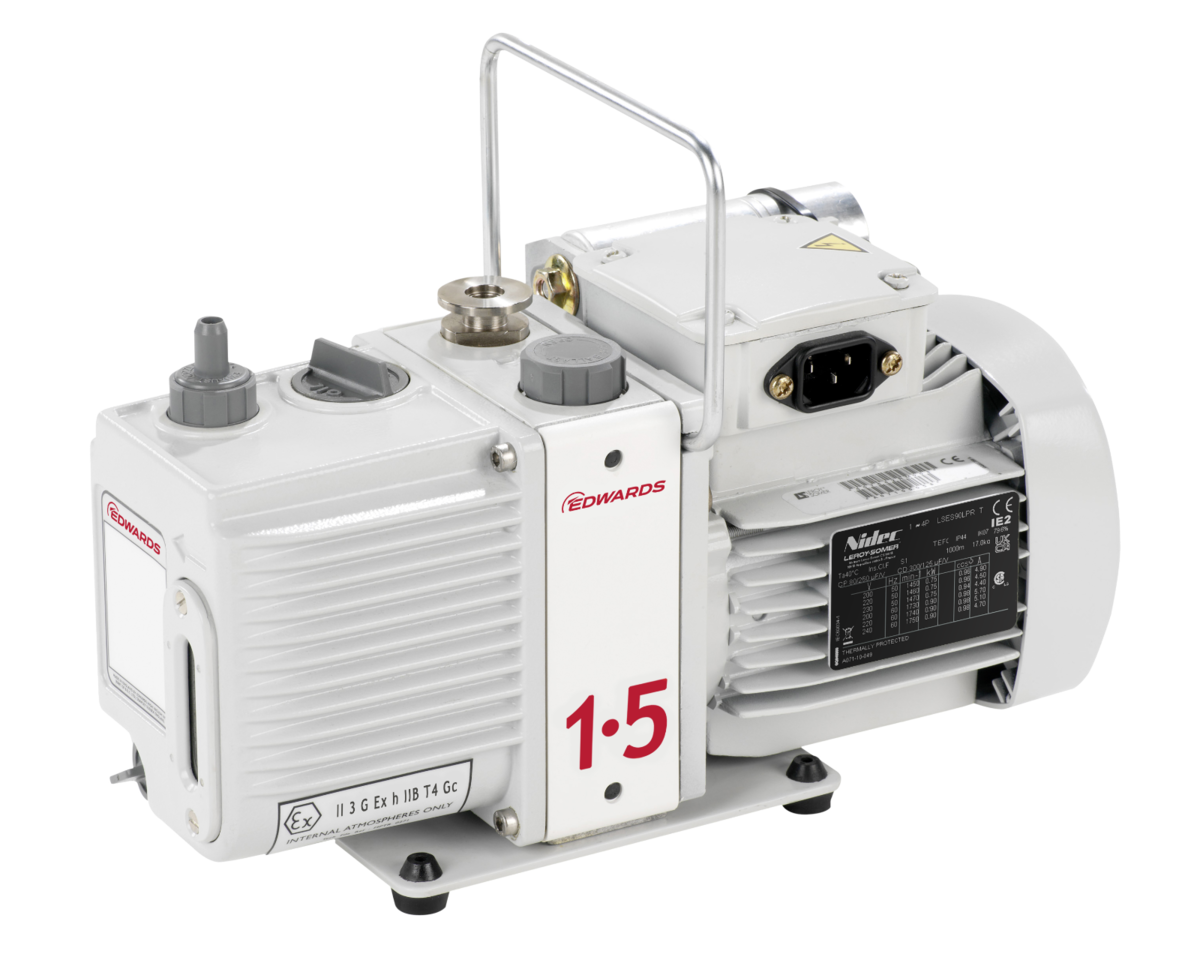

Edwards E2M1.5 Oil rotary vane pump
Price range: £2,330.00 through £2,686.00
E2M1.5 – 100-120V 50/60Hz 1Ph (IEC60320 power connector C13 – Ultragrade Performance 15)
Additional information
| Brand | Edwards |
|---|---|
| Pump type | Oil rotary vane pump |
| Variant | E2M1.5 – 2 Stage Rotary Vane Pump, 1Ph 100-120V 50/60Hz, E2M1.5 – 2 Stage Rotary Vane Pump, 1Ph 200-230V 50/60Hz, E2M1.5 – 2 Stage Rotary Vane Pump, 1Ph 200-230V 50Hz |
| Cooling method | Air Cooling (forced – fan) |
| Power supply voltage | 1Ph 100-120V 50/60Hz, 1Ph 200-230V 50/60Hz, 1Ph 200-230V 50Hz |
| Connection inlet/outlet flange | DN 10 ISO-KF (NW10) / 11 mm nozzle |
