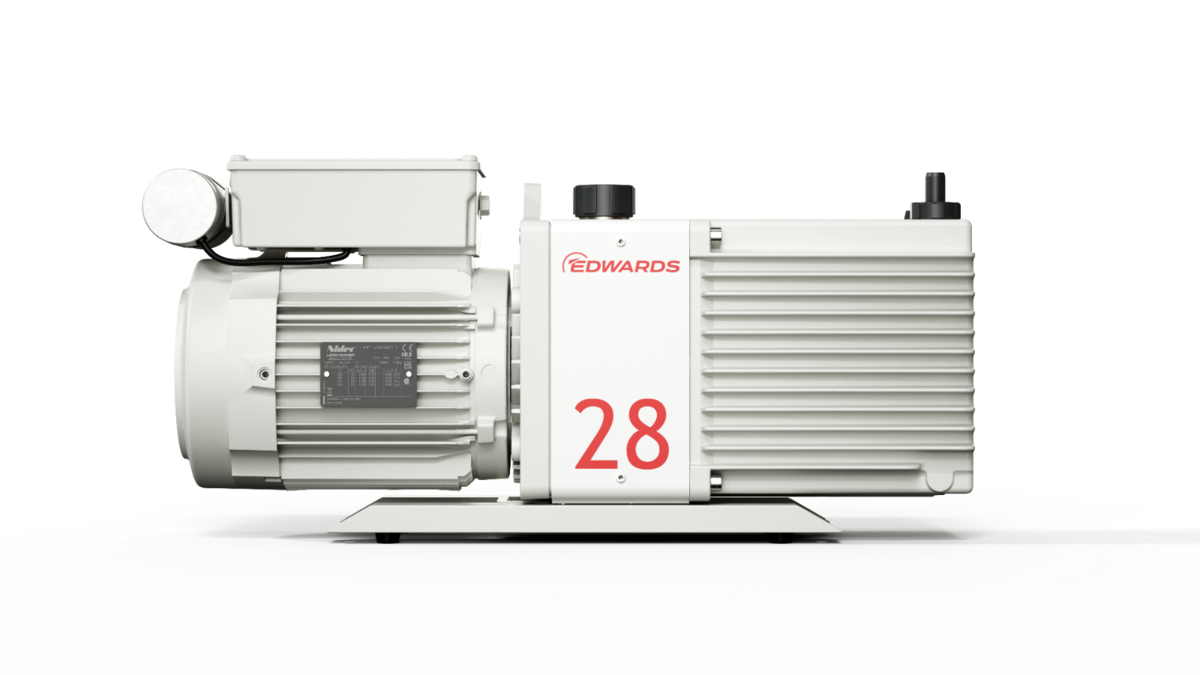

Edwards E2M28 Oil rotary vane pump

Edwards E2M28 Oil rotary vane pump

Price range: £5,937.00 through £6,793.00

E2M28FX – IE3 Asia 50/60Hz 200V 3Ph 50/60Hz or 380V 3Ph 60Hz (to be hard wired – PFPE prepared)

SKU: edwards-e2m28 Category: Tags: ,

Description

Two-stage oil rotary vane pump. Ultimate pressure 0.1 Pa. Air-cooled (fan), IP54, 57 dB(A), 44 kg. Three-phase supply. PFPE-prepared variants available. IE3 motor options for Asia and EU/US markets.

Additional information

Brand

Edwards

Pump type

Oil rotary vane pump

Variant

E2M28 FX – 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz / 380V 60Hz, E2M28 – 2 Stage Rotary Vane Pump, 1Ph 100/200V 50/60Hz, E2M28 FX – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz, E2M28 – 2 Stage Rotary Vane Pump, 1Ph 220-240V 50Hz, E2M28 – 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz / 380V 60Hz, E2M28 – 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz, E2M28 – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz, E2M28 FX – 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz

Cooling method

Air Cooling (forced – fan)

Power supply voltage

3Ph 200V 50/60Hz / 380V 60Hz, 1Ph 100/200V 50/60Hz, 1Ph 115/230V 50/60Hz, 1Ph 220-240V 50Hz, 3Ph 380-400V 50Hz / 230/460V 60Hz

Connection inlet/outlet flange

DN 25 ISO-KF (NW25), DN 25 ISO-KF (NW25) / Hose Nozzle 15 mm
