Price range: £28,985.00 through £32,724.00

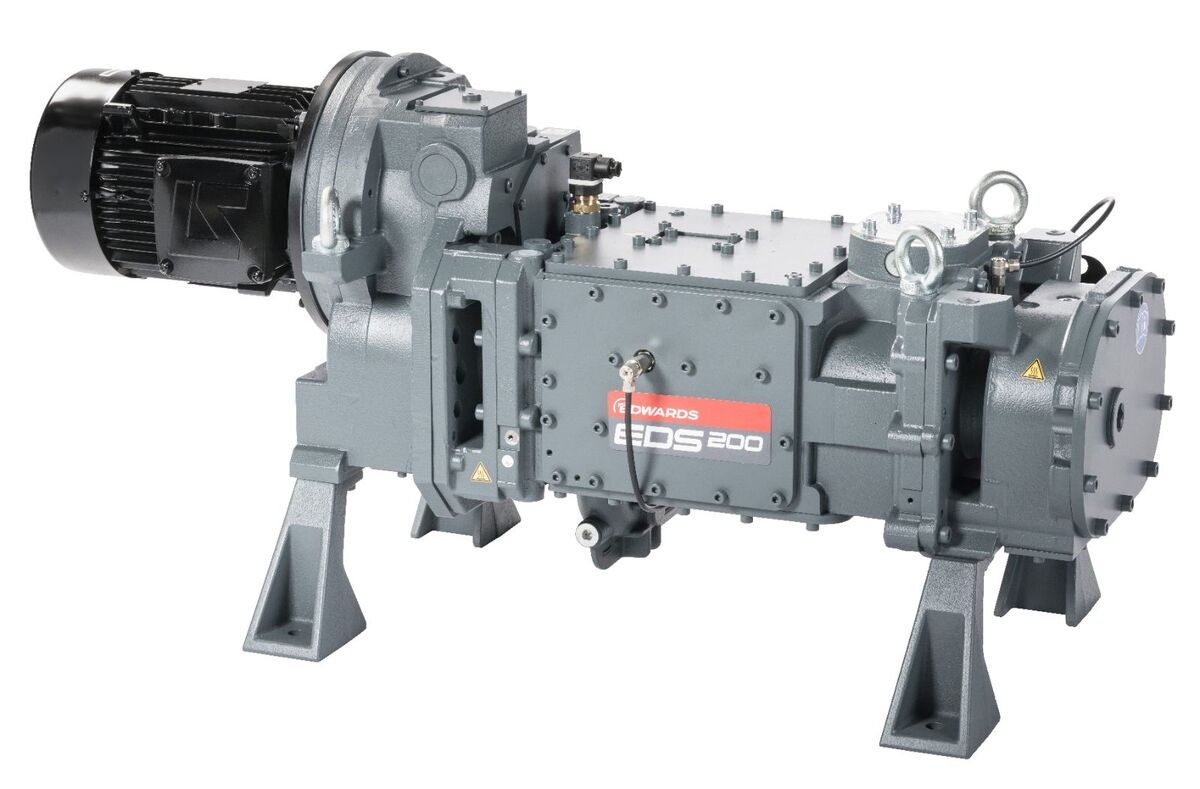

EDS200 – Asia 50Hz DC
Industrial water-cooled dry screw pump. Pumping speed 209 m³/h, ultimate pressure 0.05 mbar. Three-phase supply, 7.5 kW, IP20, 76 dB(A), 420 kg. Cast SG iron body with PTFE and fluoroelastomer seals. An ATEX-certified HazLoc variant is available separately.
| Brand | Edwards |
|---|---|
| Pump type | Dry screw pump |
| Variant | EDS200 – Dry Screw Pump, 3Ph 200V 50Hz Water Cooling direct, EDS200 – Dry Screw Pump, 3Ph 380-400V 50Hz Air Cooling (forced – fan), EDS200 – Dry Screw Pump, 3Ph 380-400V 50Hz Water Cooling direct, EDS200 – Dry Screw Pump, 3Ph 230/460V 60Hz Water Cooling direct, EDS200 – Dry Screw Pump, 3Ph 230/460V 60Hz Air Cooling (forced – fan), EDS200 – Dry Screw Pump, 3Ph 200/380V 60Hz Air Cooling (forced – fan), EDS200 – Dry Screw Pump, 3Ph 200/380V 60Hz Water Cooling direct |
| Cooling method | Water Cooling direct, Air Cooling (forced – fan) |
| Power supply voltage | 3Ph 200V 50Hz, 3Ph 380-400V 50Hz, 3Ph 230/460V 60Hz, 3Ph 200/380V 60Hz |
| Connection inlet/outlet flange | DN 63 ISO-F / DN 40 ISO-KF (NW40) |
