£40,204.00

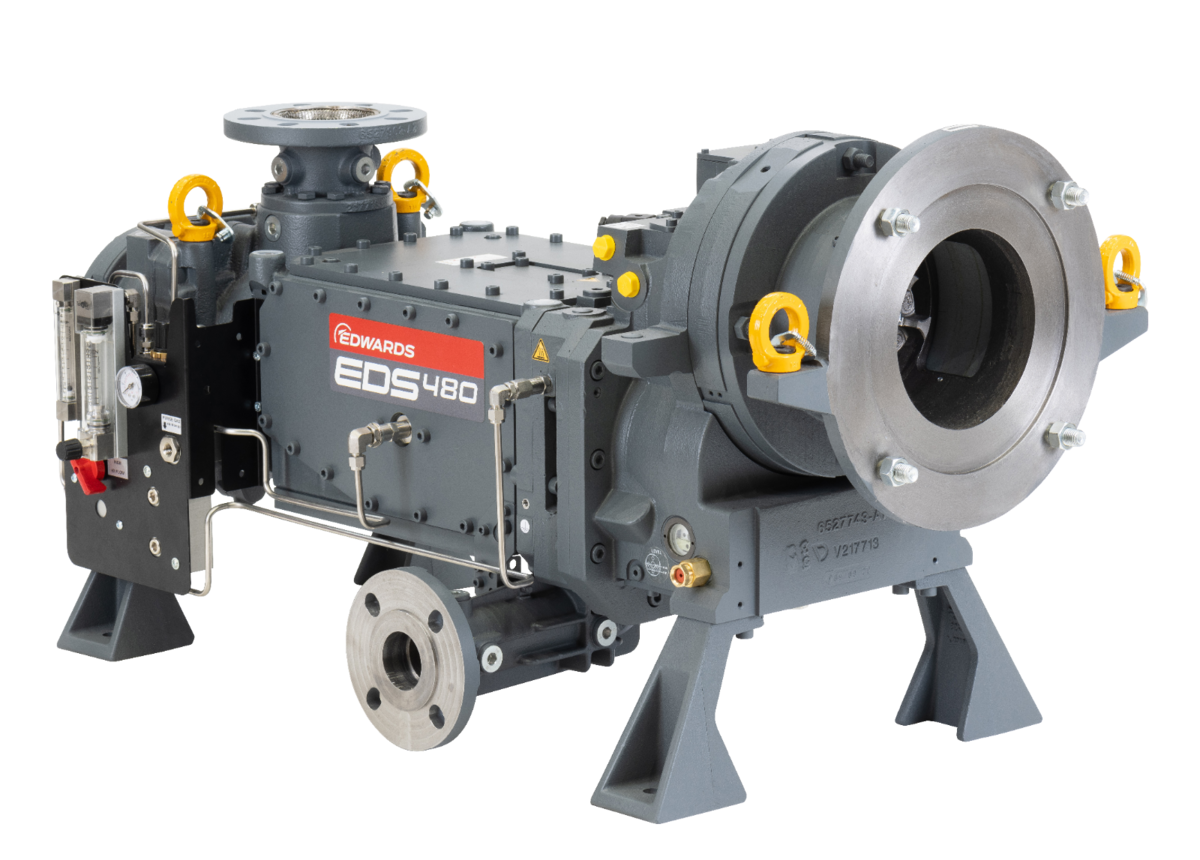

EDS480 EU/CN 50Hz DC
High-throughput industrial dry screw pump. Pumping speed 461 m³/h, ultimate pressure 0.01 mbar. Water-cooled direct, 11 kW, IP54, 71 dB(A), 520 kg. Cast grey iron body with stainless steel and FKM seals. An ATEX-certified HazLoc variant is available separately.
| Brand | Edwards |
|---|---|
| Pump type | Dry screw pump |
| Variant | EDS480 – Dry Screw Pump, 3Ph 200/400V 50Hz Water Cooling direct, EDS480 – Dry Screw Pump, 3Ph 200/380V 50Hz Water Cooling direct, EDS480 – Dry Screw Pump, 3Ph 200/380V 60Hz Water Cooling direct, EDS480 – Dry Screw Pump, 3Ph 575V 60Hz Water Cooling direct, EDS480 – Dry Screw Pump, 3Ph 230/460V 60Hz Water Cooling direct |
| Cooling method | Water Cooling direct |
| Power supply voltage | 3Ph 200/400V 50Hz, 3Ph 200/380V 50Hz, 3Ph 200/380V 60Hz, 3Ph 575V 60Hz, 3Ph 230/460V 60Hz |
| Connection inlet/outlet flange | DN 63 ISO-F / DN 63 ISO-F |
