£47,573.00

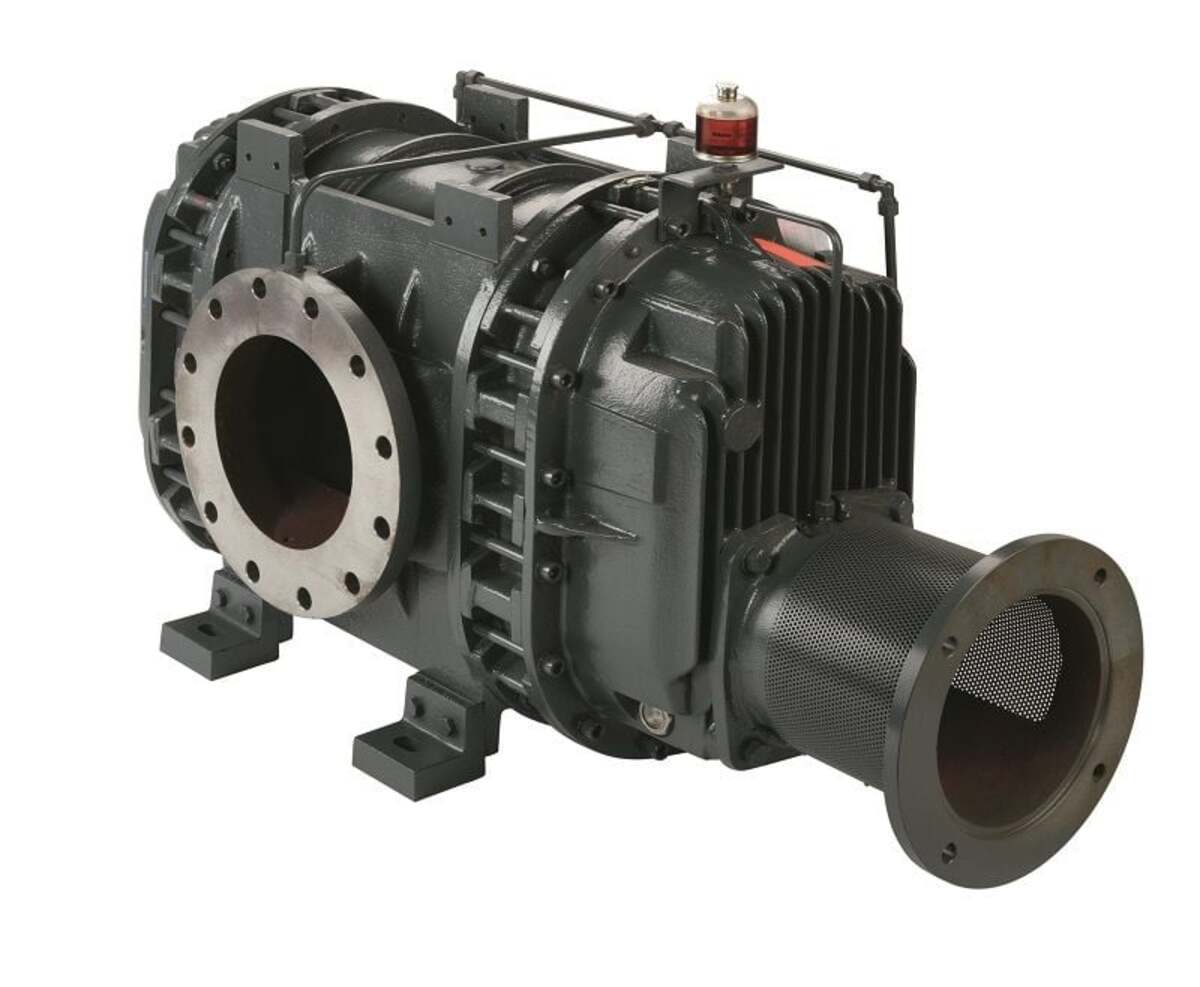

HV8000 HF – bare shaft Booster
High-vacuum mechanical booster pump supplied as a bareshaft unit without motor. Pumping speed 7200 m³/h, ultimate pressure 0.02 Pa. Water-cooled, 18.5 kW, IP44, 82 dB(A), 570 kg. Grey cast iron and SG iron body with silicon carbide seal faces.
| Brand | Edwards |
|---|---|
| Pump type | Mechanical booster pump |
| Variant | HV8000 – Mechanical Booster Pump, Bareshaft without motor, Horizontal Flow (HF), HV8000 – Mechanical Booster Pump, Bareshaft without motor, Vertical Flow (VF) |
| Cooling method | Water Cooling |
| Power supply voltage | Bareshaft without motor |
| Connection inlet/outlet flange | ASA/ANSI 10" / ASA/ANSI 10" |
