Price range: £98,459.00 through £103,886.00

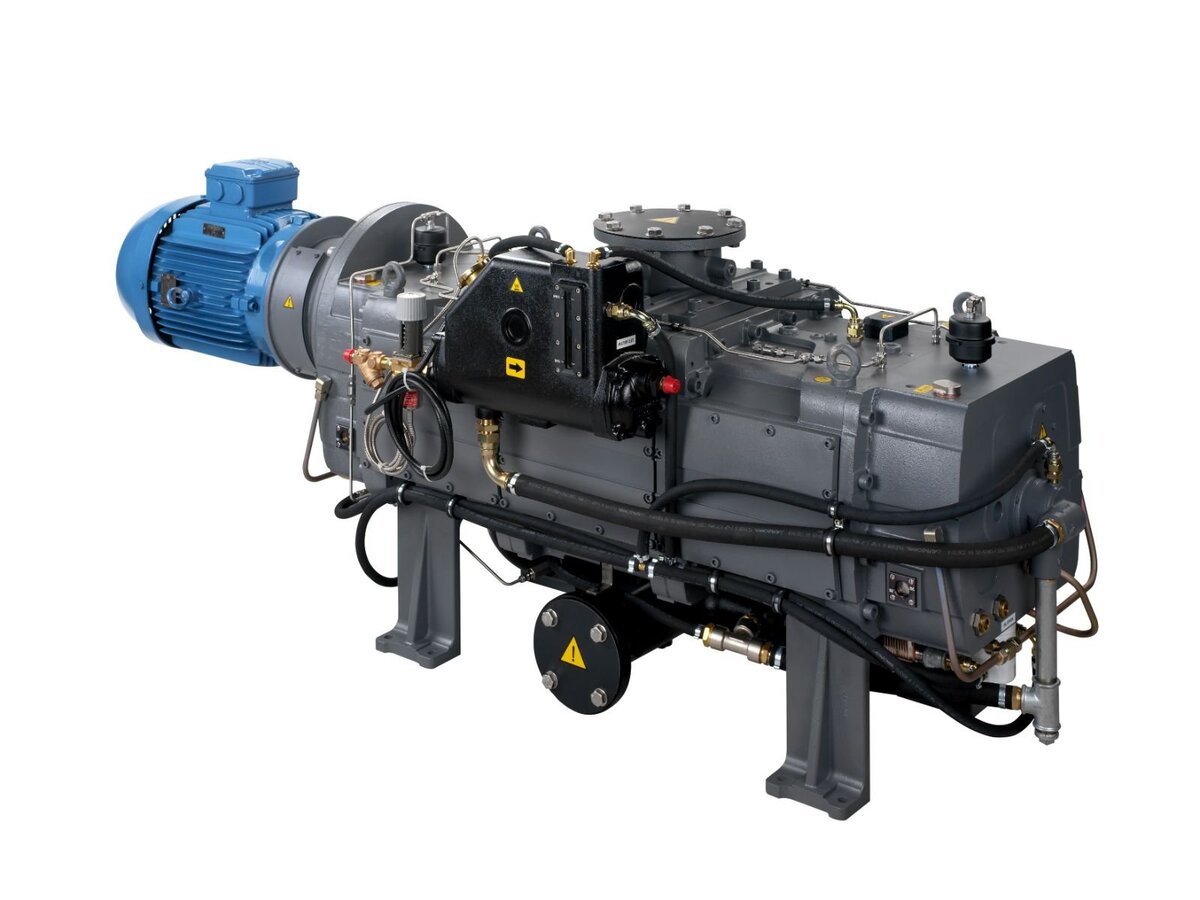

IDX1300 – 60Hz bareshaft ANSI for 40hp Mtr
Very large bareshaft dry screw pump supplied without motor. Pumping speed 1102 m³/h, ultimate pressure 0.05 mbar. Water-cooled, 82 dB(A), 1705 kg. SG iron and aluminium body with stainless steel, PTFE and Viton seals. Connects via standard ANSI flange.
| Brand | Edwards |
|---|---|
| Pump type | Dry screw pump |
| Variant | IDX1300 – Dry Screw Pump, Bareshaft without motor 60 Hz, IDX1300 – Dry Screw Pump, AC 24V |
| Cooling method | Water Cooling |
| Power supply voltage | Bareshaft without motor, AC 24V DC 24V |
| Connection inlet/outlet flange | ASA/ANSI 6" / ASA/ANSI 3" |
