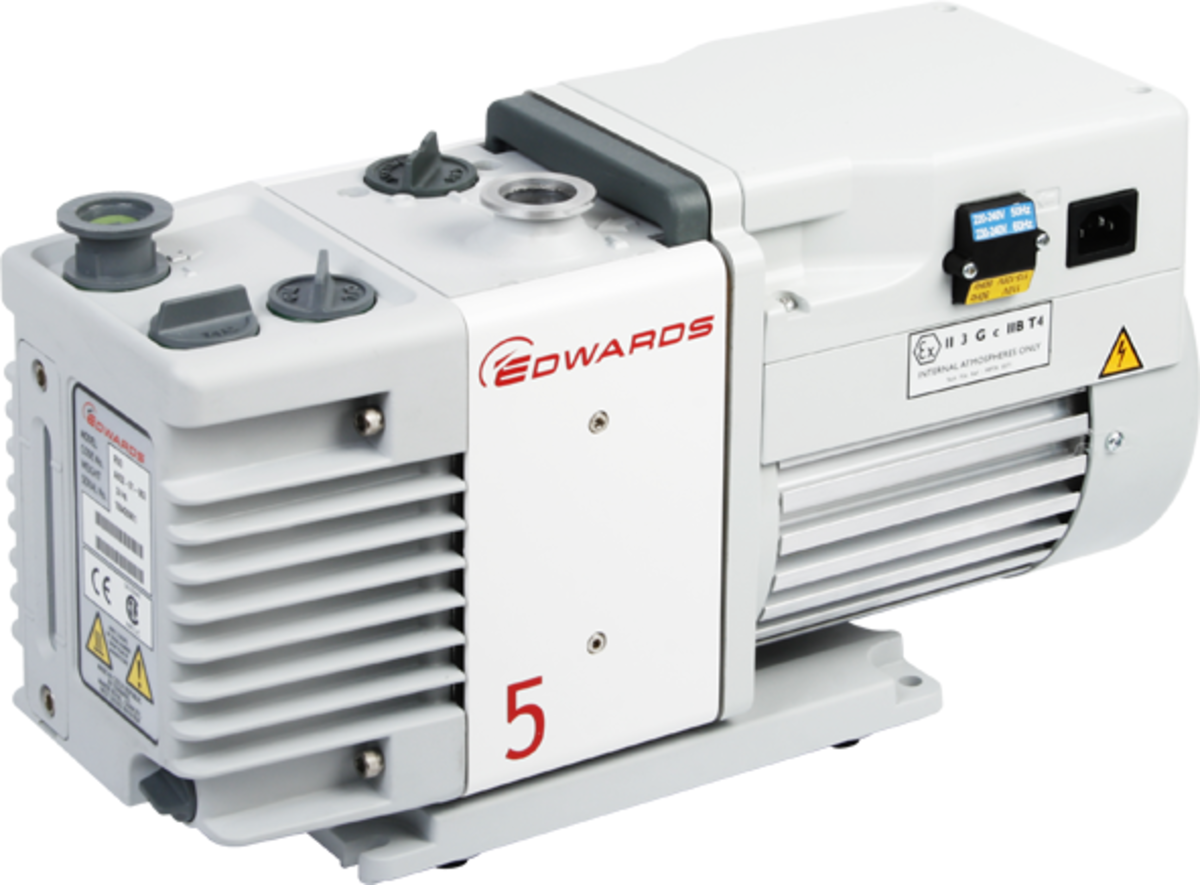

Edwards RV5 Oil rotary vane pump

Edwards RV5 Oil rotary vane pump

Price range: £3,428.00 through £4,398.00

RV5 – 115/230V 50/60Hz set to 115V (IEC60320 power connector C13 – Ultragrade Performance 19)

SKU: edwards-rv5 Category: Tags: ,

Description

Two-stage oil rotary vane pump. Ultimate pressure 0.2 Pa. Air-cooled (fan), IP44, 48 dB(A), 28 kg. Single-phase supply as standard with three-phase options available.

Additional information

Brand

Edwards

Pump type

Oil rotary vane pump

Variant

RV5 – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz US, RV5 FX – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz US, RV5 – 2 Stage Rotary Vane Pump, 1Ph 100/200V 50/60Hz, RV5 – 2 Stage Rotary Vane Pump, 1Ph 100/200V 50/60Hz JP, RV5 FX – 2 Stage Rotary Vane Pump, 3Ph 200-220,380-415/200-230,460V 50/60Hz, RV5 FX – 2 Stage Rotary Vane Pump, 1Ph 100/200V 50/60Hz JP, RV5 – 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz, RV5 – 2 Stage Rotary Vane Pump, 3Ph 200-220,380-415/200-230,460V 50/60Hz, RV5 FX – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz EU, RV5 – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz EU

Cooling method

Air Cooling (forced – fan)

Power supply voltage

1Ph 115/230V 50/60Hz, 1Ph 100/200V 50/60Hz, 3Ph 200-220,380-415/200-230,460V 50/60Hz, 3Ph 200V 50/60Hz

Connection inlet/outlet flange

DN 25 ISO-KF (NW25) / DN 25 ISO-KF (NW25)
