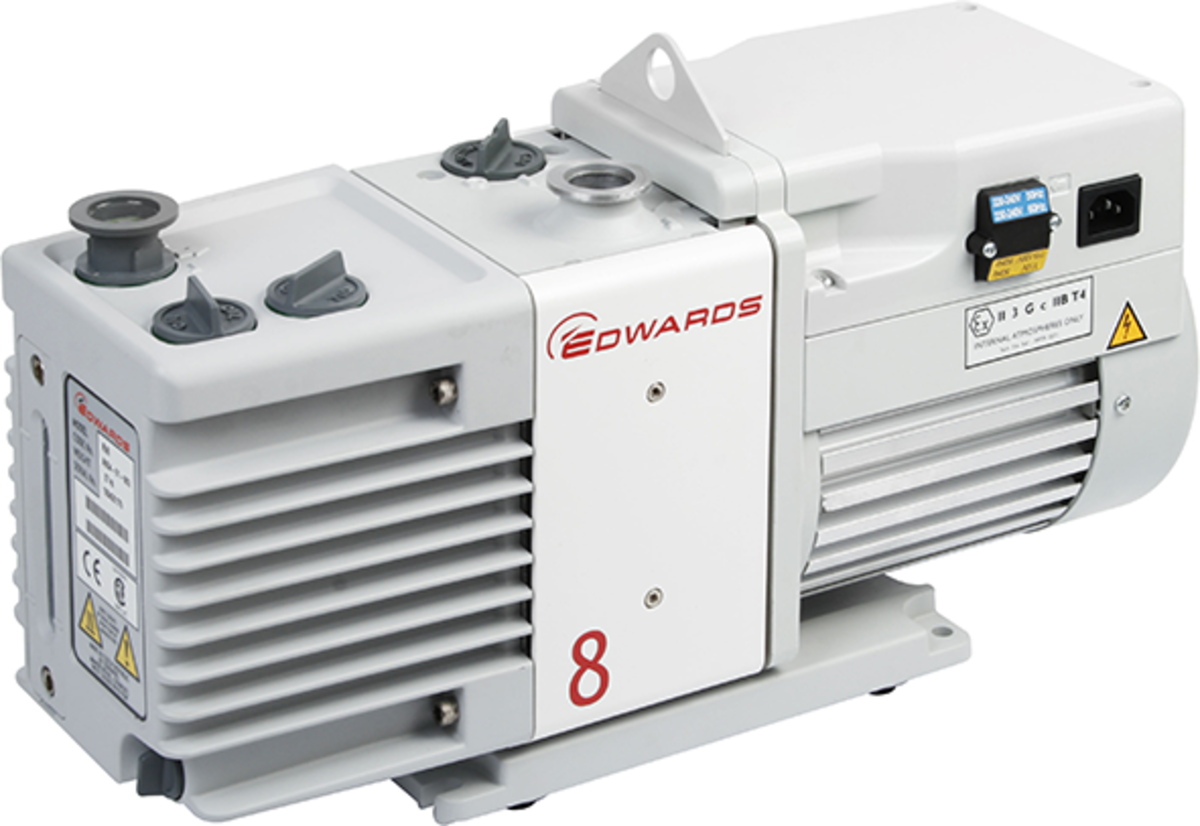

Edwards RV8 Oil rotary vane pump

Edwards RV8 Oil rotary vane pump

Price range: £3,942.00 through £4,911.00

RV8FX – 115/230V 50/60Hz set to 115V (IEC 60320 power connector C13 – PFPE prepared)

SKU: edwards-rv8 Category: Tags: ,

Description

Two-stage oil rotary vane pump. Ultimate pressure 0.2 Pa. Air-cooled (fan), IP44, 48 dB(A), 26 kg. Single-phase supply as standard with three-phase options available. PFPE-prepared variants available for aggressive gas applications.

Additional information

Brand

Edwards

Pump type

Oil rotary vane pump

Variant

RV8 FX – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz US, RV8 – 2 Stage Rotary Vane Pump, 1Ph 100/200V 50/60Hz, RV8 – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz US, RV8 – 2 Stage Rotary Vane Pump, 3Ph 200-208V 50Hz 200-230V 60Hz IE2, RV8 – 2 Stage Rotary Vane Pump, 3Ph 380-415V 50Hz / 460V 60Hz, RV8 FX – 2 Stage Rotary Vane Pump, 3Ph 380-415V 50Hz / 460V 60Hz, RV8 FX – 2 Stage Rotary Vane Pump, 3Ph 200-208V 50Hz 200-230V 60Hz IE2, RV8 – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz EU, RV8 FX – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz EU, RV8 FX – 2 Stage Rotary Vane Pump, 1Ph 100/200V 50/60Hz JP, RV8 – 2 Stage Rotary Vane Pump, 1Ph 100/200V 50/60Hz JP

Cooling method

Air Cooling (forced – fan)

Power supply voltage

1Ph 115/230V 50/60Hz, 1Ph 100/200V 50/60Hz, 3Ph 200-208V 50Hz 200-230V 60Hz IE2, 3Ph 380-415V 50Hz / 460V 60Hz

Connection inlet/outlet flange

DN 25 ISO-KF (NW25) / DN 25 ISO-KF (NW25)
