Price range: £12,047.00 through £13,171.00
XDS35iC – 100-120/200-230V 50/60Hz 1Ph

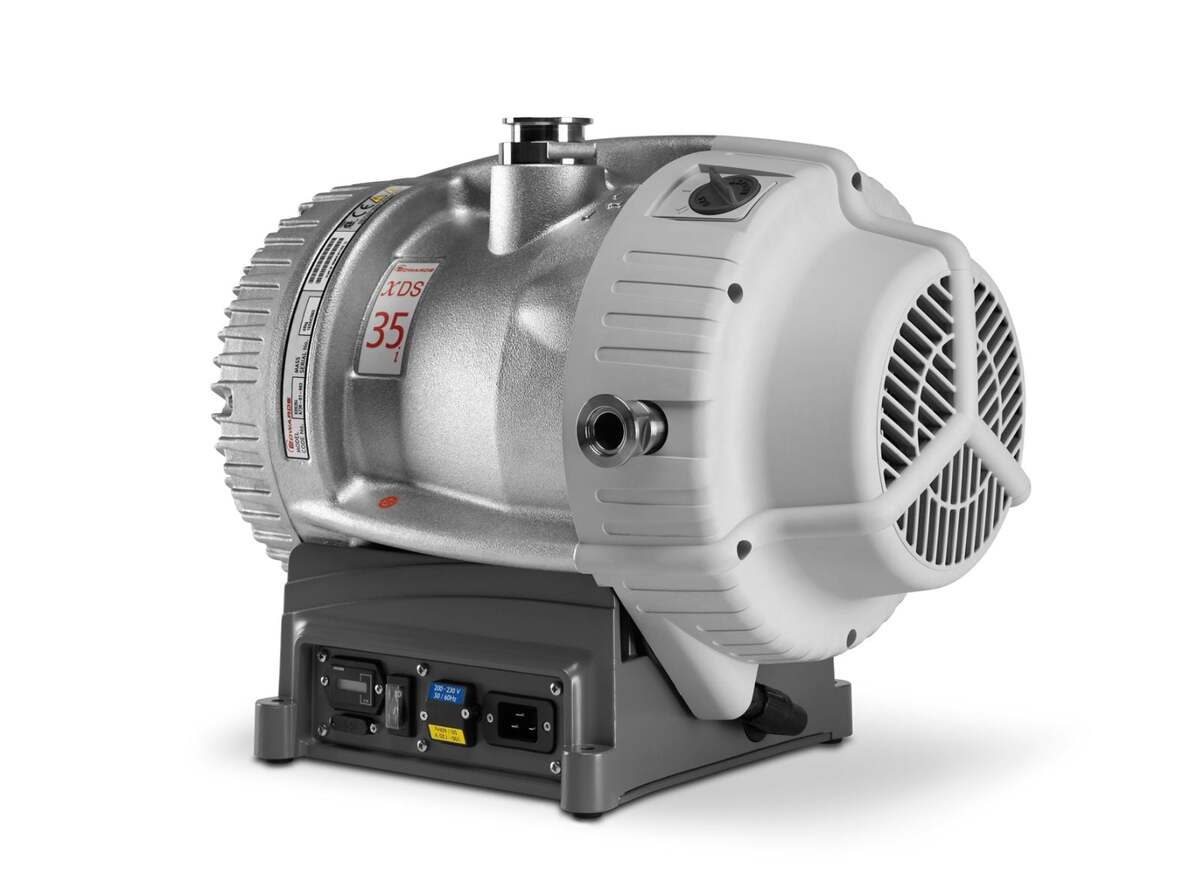

The XDS35i is a single-phase dry scroll pump with a pumping speed of 35 m³/h, suitable for backing turbomolecular pumps and general rough vacuum applications. Universal voltage input (100-120V or 200-230V, 50/60Hz) allows worldwide use. Four variants are available: standard, standard without gas ballast (NGB), corrosion-resistant (C), and corrosion-resistant without gas ballast (CNGB). Enhanced (E) variants add improved ultimate pressure performance.
| Brand | Edwards |
|---|---|
| Pump type | Dry scroll pump |
| Variant | XDS35iC – 100-120/200-230V 50/60Hz 1Ph, XDS35iE – NGB 100-120/200-230V 50/60Hz 1Ph Enhanced, XDS35i – NGB 100-120/200-230V 50/60Hz 1Ph, XDS35i – 100-120/200-230V 50/60Hz 1Ph, XDS35iCE – 100-120/200-230V 50/60Hz 1Ph Enhanced, XDS35iE – 100-120/200-230V 50/60Hz 1Ph Enhanced |
| Cooling method | Air Cooling (forced – fan) |
| Power supply voltage | 1Ph 100-120/200-230V 50/60Hz |
| Connection inlet/outlet flange | DN 40 ISO-KF (NW40) / DN 25 ISO-KF (NW25) |
