Price range: £6,886.00 through £10,660.00

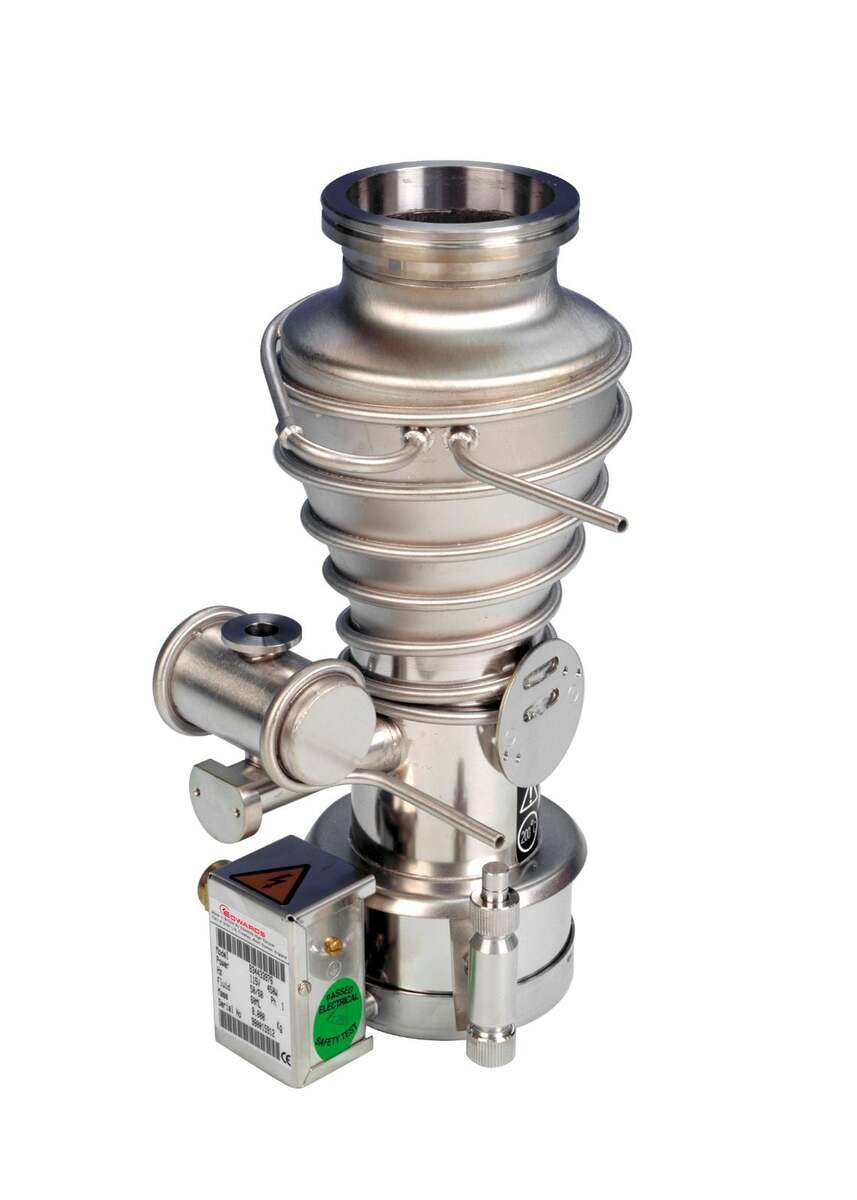

DIFFSTAK 63/150C – 230-250V 1-ph 50/60 Hz
Self-contained vapour diffusion pump with integral cold cap and water-cooled baffle. Pumping speed 150 l/s, ultimate pressure 3×10⁻⁶ Pa. 450 W, single-phase 110-250V, IP67, 5 kg. Suited to analytical and research applications requiring clean high vacuum.
| Brand | Edwards |
|---|---|
| Pump type | Diffusion pump |
| Variant | Diffstak 63/150 Diffusion Pump – 1Ph 230-250V 50/60Hz, C – Unvalved, Diffstak 63/150 Diffusion Pump – 1Ph 230-250V 50/60Hz, P – Pneumatic Valve, Diffstak 63/150 Diffusion Pump – 1Ph 230-250V 50/60Hz, M – Manual Valve, Diffstak 63/150 Diffusion Pump – 1Ph 210-225V 50/60Hz, M – Manual Valve, Diffstak 63/150 Diffusion Pump – 1Ph 110-125V 50/60Hz, M – Manual Valve, Diffstak 63/150 Diffusion Pump – 1Ph 210-225V 50/60Hz, P – Pneumatic Valve, Diffstak 63/150 Diffusion Pump – 1Ph 110-125V 50/60Hz, C – Unvalved, Diffstak 63/150 Diffusion Pump – 1Ph 210-225V 50/60Hz, C – Unvalved, Diffstak 63/150 Diffusion Pump – 1Ph 110-125V 50/60Hz, P – Pneumatic Valve |
| Cooling method | Water Cooling |
| Power supply voltage | 1Ph 230-250V 50/60Hz, 1Ph 210-225V 50/60Hz, 1Ph 110-125V 50/60Hz |
| Connection inlet/outlet flange | DN 63 ISO-K / DN 10 ISO-KF (NW10), DN 63 ISO-F / DN 10 ISO-KF (NW10) |
