Description
Small two-stage oil rotary vane pump. Pumping speed 0.75 m³/h, ultimate pressure 0.3 Pa. Air-cooled (fan), IP44, 43 dB(A), 10 kg. Single-phase supply via IEC C13 connector. Suited to analytical instruments and mass spectrometry.

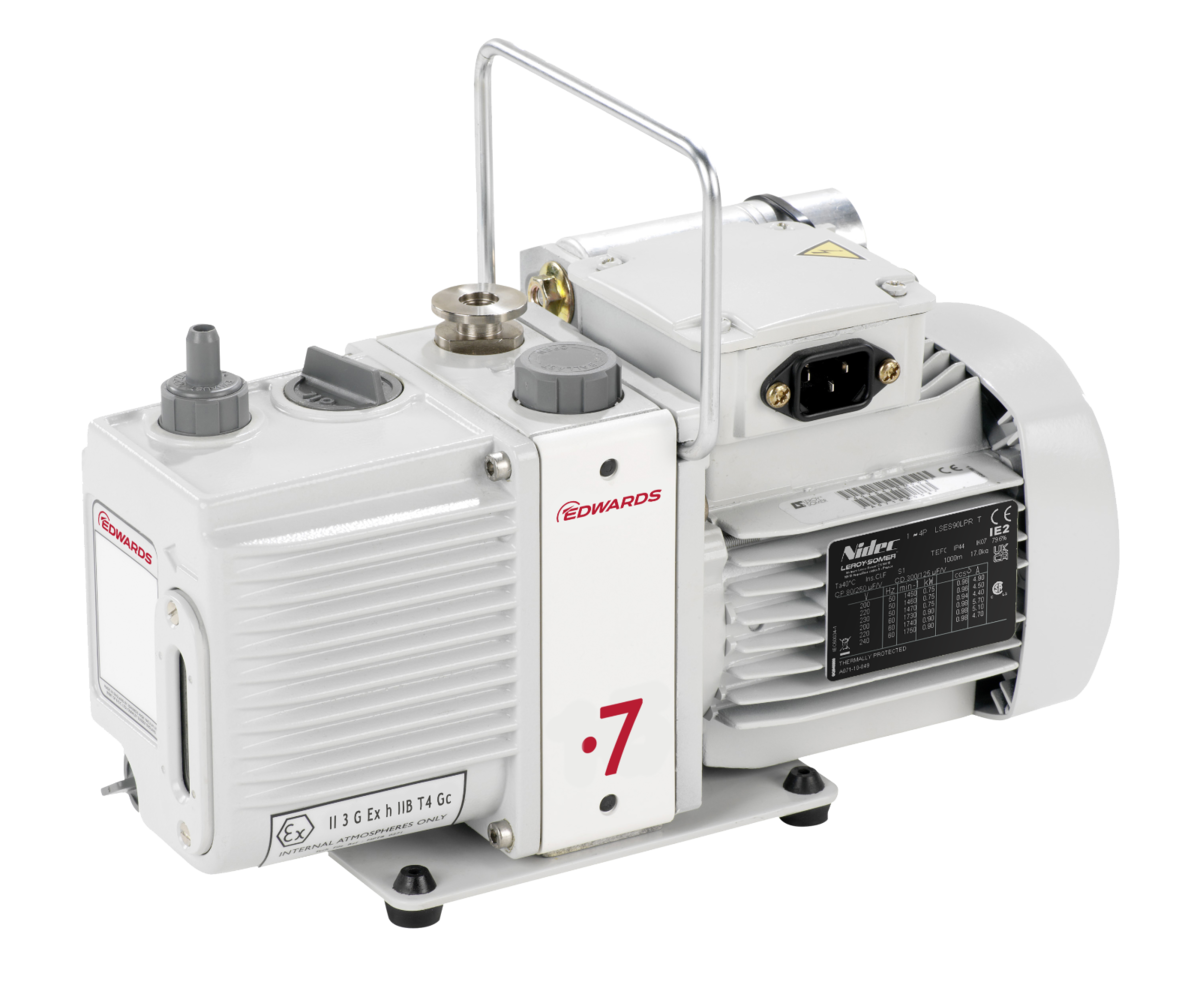

Edwards E2M0.7 Oil rotary vane pump
£2,216.00
E2M0.7 – 200-230V 50/60Hz 1Ph (IEC60320 power connector C13 – Ultragrade Performance 15)
Additional information
| Brand | Edwards |
|---|---|
| Pump type | Oil rotary vane pump |
| Variant | E2M0.7 – 2 Stage Rotary Vane Pump, 1Ph 200-230V 50/60Hz, E2M0.7 – 2 Stage Rotary Vane Pump, 1Ph 100-120V 50/60Hz |
| Cooling method | Air Cooling (forced – fan) |
| Power supply voltage | 1Ph 200-230V 50/60Hz, 1Ph 100-120V 50/60Hz |
| Connection inlet/outlet flange | DN 10 ISO-KF (NW10) / 11 mm nozzle |
