Description
Very large water-cooled two-stage oil rotary vane pump. Ultimate pressure 0.33 Pa. Three-phase supply, IP55, 75 dB(A), 222 kg. IE3 motor for Asia, EU and US markets.

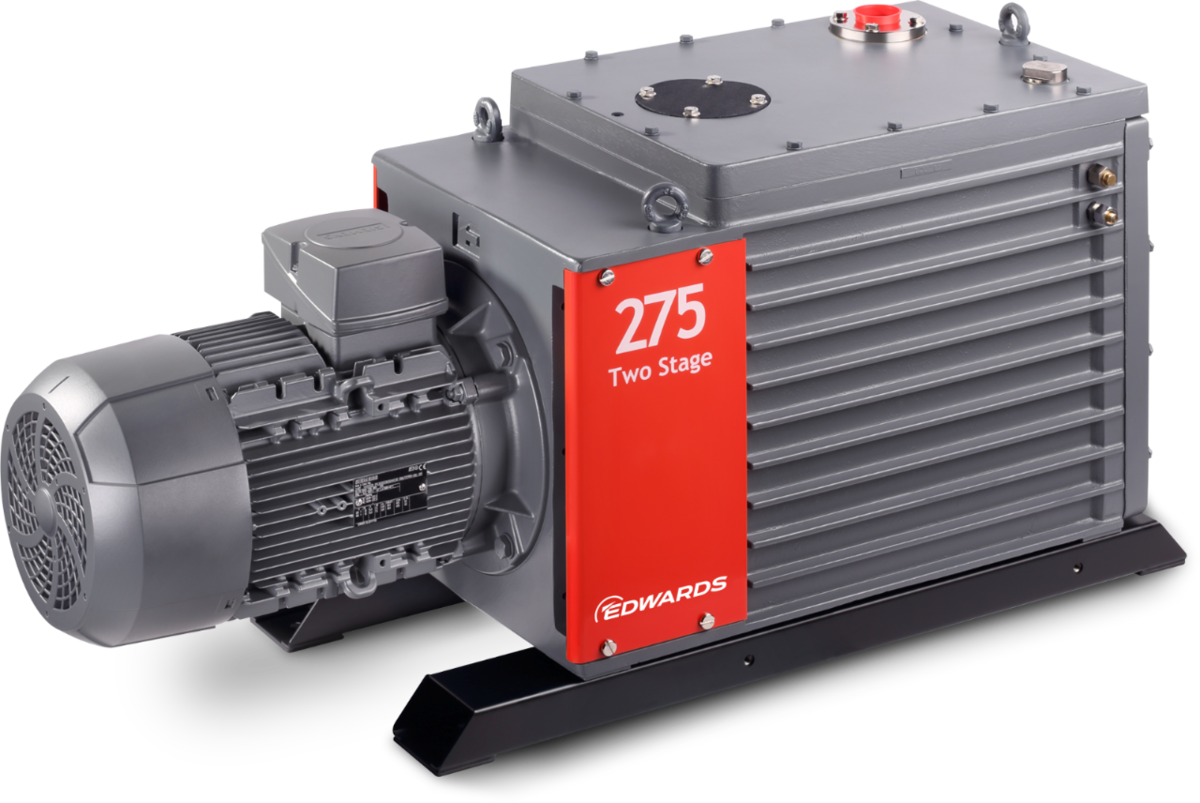

Edwards E2M275 Oil rotary vane pump
Price range: £24,757.00 through £28,687.00
E2M275 AZ – IE3 ASIA 50/60Hz
Additional information
| Brand | Edwards |
|---|---|
| Pump type | Oil rotary vane pump |
| Variant | E2M275 AZ – 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz / 380V 60Hz, E2M275 – 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz / 380V 60Hz, E2M275 – 2 Stage Rotary Vane Pump, 3Ph 220−240/380−415V 50Hz / 220−266/380−460V 60Hz, E2M275 – 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz, E2M275 AZ – 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz |
| Cooling method | Water Cooling |
| Power supply voltage | 3Ph 200V 50/60Hz / 380V 60Hz, 3Ph 220−240/380−415V 50Hz / 220−266/380−460V 60Hz, 3Ph 380-400V 50Hz / 230/460V 60Hz |
| Connection inlet/outlet flange | DN 63 ISO-F / DN 40 ISO-F |
