Description
Single-stage oil rotary vane pump. Pumping speed 40 m³/h, ultimate pressure 40 Pa. Air-cooled, IP55, 58 dB(A), 1.3 kW, 67 kg. Wide voltage range including 575V 60Hz. An ATEX-certified HazLoc variant is available separately.

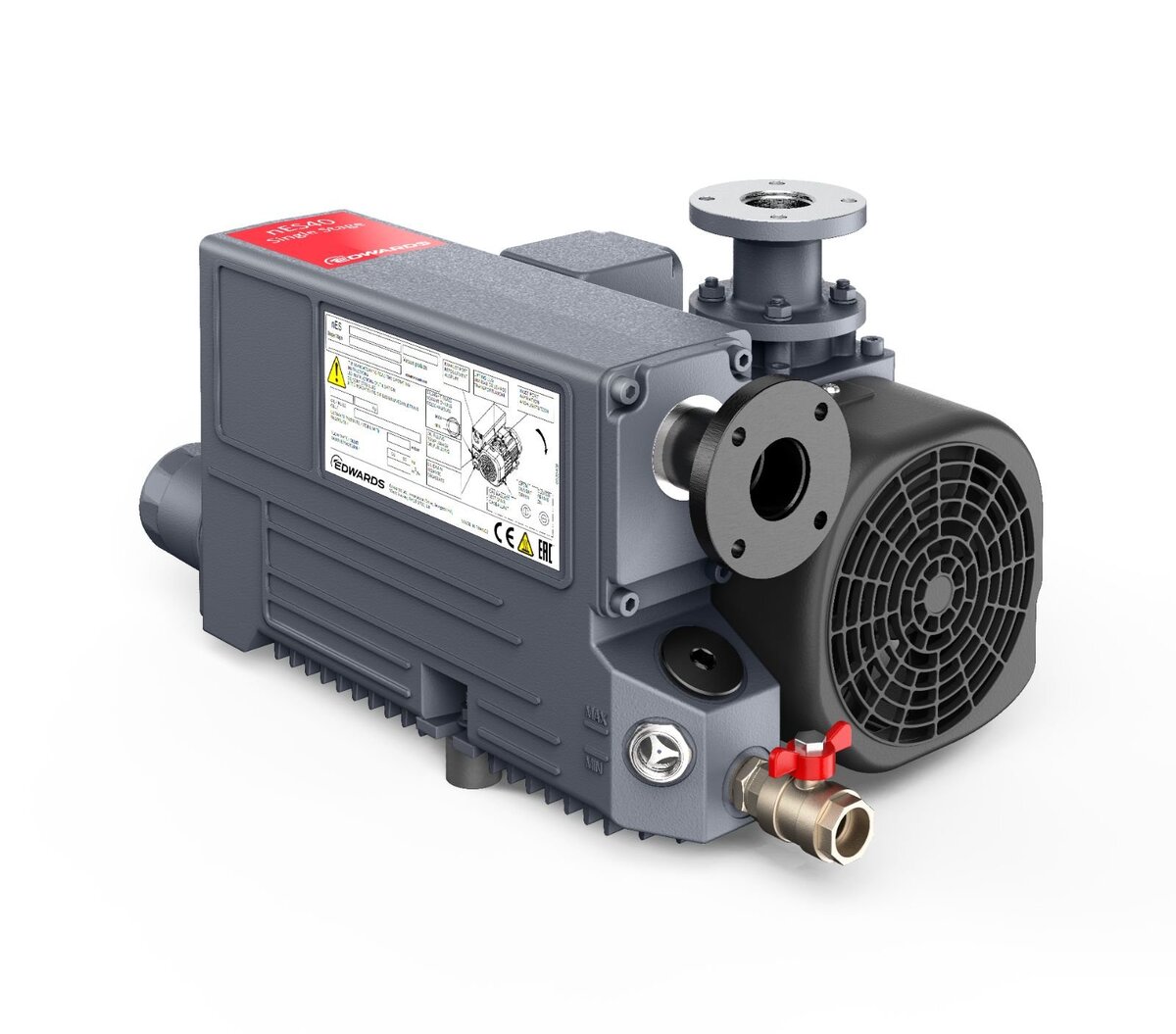

Edwards nES40 Oil rotary vane pump
Price range: £3,761.00 through £3,820.00
nES40 – 575V 60Hz NPT
Additional information
| Brand | Edwards |
|---|---|
| Pump type | Oil rotary vane pump |
| Variant | nES40 – Single-Stage Rotary Vane Pump, 3Ph 575V 60Hz, Air Cooling, nES40 – Single-Stage Rotary Vane Pump, 3Ph 220-230/380-400V 50Hz; 220-230/380-400/440-460V 60Hz, Air Cooling |
| Cooling method | Air Cooling |
| Power supply voltage | 3Ph 575V 60Hz, 3Ph 220-230/380-400V 50Hz; 220-230/380-400/440-460V 60Hz |
| Connection inlet/outlet flange | DN 40 ISO-F / DN 40 ISO-F |
