Description
Large single-stage oil rotary vane pump. Pumping speed 641 m³/h, ultimate pressure 8 Pa. Air-cooled, IP55, 72 dB(A), 18.5 kW, 760 kg. An ATEX-certified HazLoc variant is available separately.

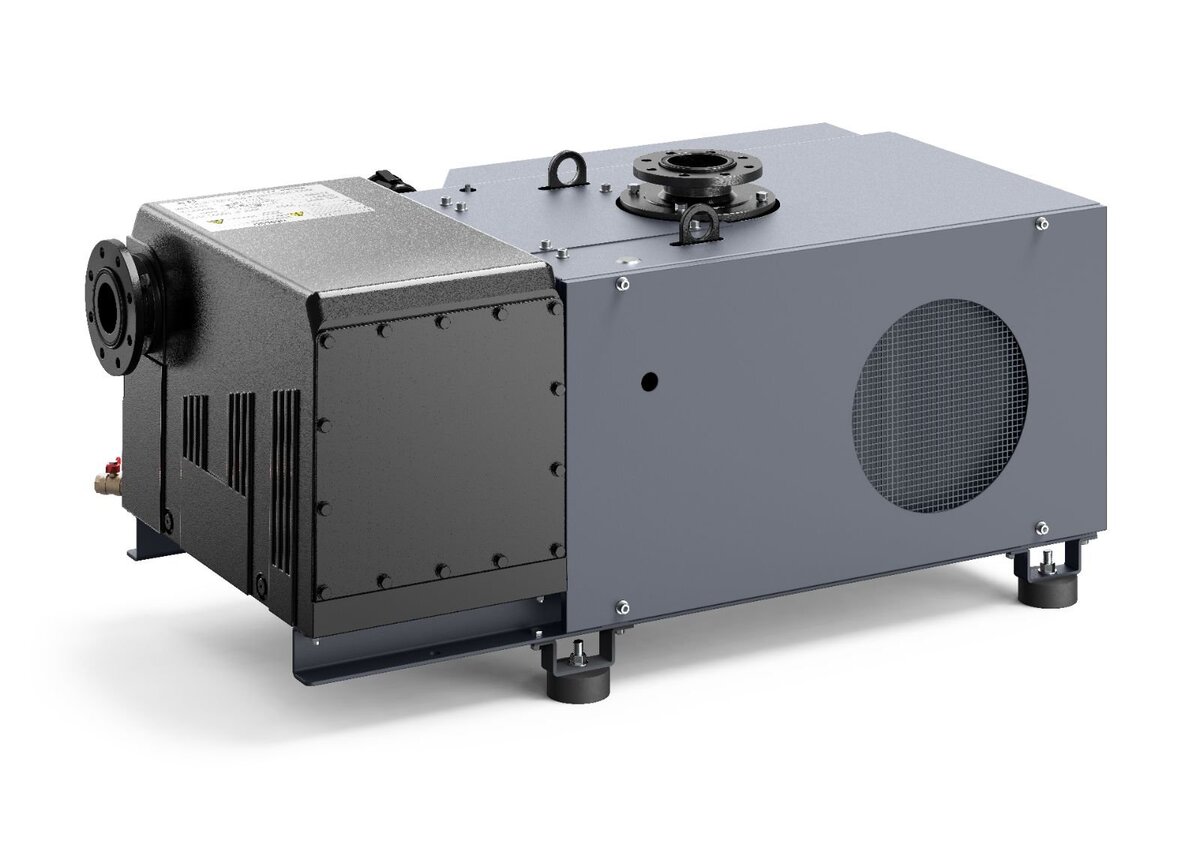

Edwards nES630 Oil rotary vane pump
Price range: £39,016.00 through £39,029.00
nES630 – 220-230V 380-400V +-10% 50Hz; 220-230V 380-400V 440-460V +-10% 60Hz – (EU/US/ASIA incl. JPN – air cooled – wide range)
Additional information
| Brand | Edwards |
|---|---|
| Pump type | Oil rotary vane pump |
| Variant | nES630 – Single-Stage Rotary Vane Pump, 3Ph 220-230V 380-400V +-10% 50Hz / 220-230V 380-400V 440-460V +-10% 60Hz, Air Cooling, nES630 – Single-Stage Rotary Vane Pump, 3Ph 220-230V 380-400V +-10% 50Hz / 220-230V 380-400V 440-460V +-10% 60Hz, Water Cooling |
| Cooling method | Air Cooling, Water Cooling |
| Power supply voltage | 3Ph 220-230V 380-400V +-10% 50Hz / 220-230V 380-400V 440-460V +-10% 60Hz |
| Connection inlet/outlet flange | DN 100 ISO-F / DN 100 ISO-F |
