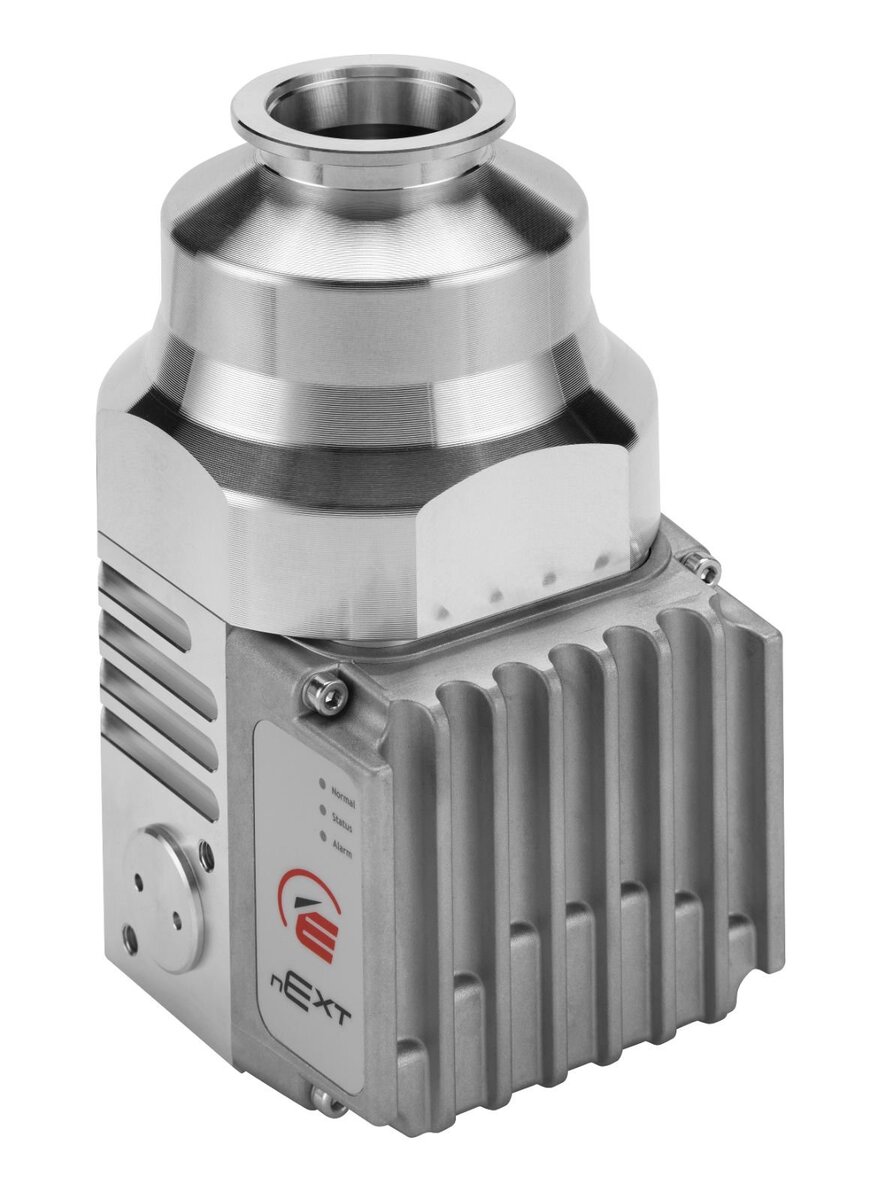

Edwards nEXT85 Turbomolecular pump

Edwards nEXT85 Turbomolecular pump

Price range: £5,945.00 through £6,698.00

nEXT85H – ISO63 NW16 80W

SKU: edwards-next85 Category: Tags: ,

Description

Turbomolecular pump. Pumping speed 84-86 l/s, ultimate pressure 5×10⁻⁷ Pa. 80 W, DC 24V or 48V, IP64, 3 kg. Multiple cooling options. Suited to mass spectrometry, ion beam and surface analysis instruments.

Additional information

Brand

Edwards

Pump type

Turbomolecular pump

Variant

nEXT85H – Turbo Pump, DC 24V DC 48V, 80 W, DN 63 ISO-K, H – High Compression, nEXT85H – Turbo Pump, DC 24V DC 48V, 80 W, DN 100 ISO-K, H – High Compression, nEXT85D – Turbo Pump, DC 24V DC 48V, 80 W, DN 40 ISO-KF (NW40), D – Duplex, nEXT85D – Turbo Pump, DC 24V DC 48V, 80 W, DN 63 ISO-K, D – Duplex, nEXT85D – Turbo Pump, DC 24V DC 48V, 80 W, DN 63 CF (4.5"), D – Duplex, nEXT85D – Turbo Pump, DC 24V DC 48V, 80 W, DN 100 ISO-K, D – Duplex, nEXT85H – Turbo Pump, DC 24V DC 48V, 80 W, DN 40 ISO-KF (NW40), H – High Compression, nEXT85H – Turbo Pump, DC 24V DC 48V, 80 W, DN 63 CF (4.5"), H – High Compression

Cooling method

Air Cooling (forced – fan) Water Cooling Air Cooling (convection)

Power supply voltage

DC 24V DC 48V

Connection inlet/outlet flange

DN 63 ISO-K / DN 16 ISO-KF (NW16), DN 100 ISO-K / DN 16 ISO-KF (NW16), DN 40 ISO-KF (NW40) / DN 16 ISO-KF (NW16), DN 63 CF (4.5") / DN 16 ISO-KF (NW16)
