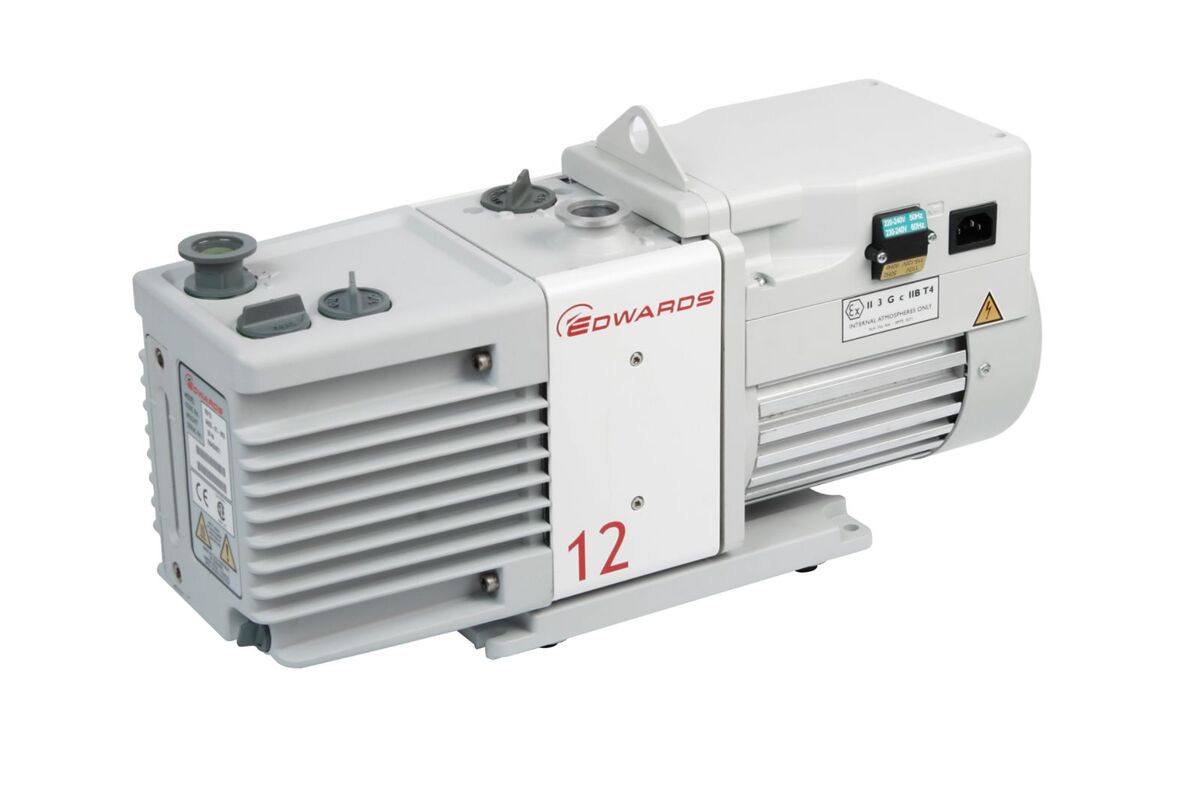

Edwards RV12 Oil rotary vane pump

Edwards RV12 Oil rotary vane pump

Price range: £4,350.00 through £5,320.00

RV12FX – 380-415V 50Hz 460V 60Hz 3Ph IE2 (hard wired – PFPE prepared)

SKU: edwards-rv12 Category: Tags: ,

Description

Two-stage oil rotary vane pump. Ultimate pressure 0.2 Pa. Air-cooled (fan), IP54, 50 dB(A), 26.3 kg. Available in single- and three-phase configurations. Three-phase versions include IE2 motor options.

Additional information

Brand

Edwards

Pump type

Oil rotary vane pump

Variant

RV12 FX – 2 Stage Rotary Vane Pump, 3Ph 380-415V 50Hz / 460V 60Hz, RV12 FX – 2 Stage Rotary Vane Pump, 3Ph 200-208V 50Hz 200-230V 60Hz IE2, RV12 FX – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz US, RV12 – 2 Stage Rotary Vane Pump, 1Ph 100-220V, RV12 – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz US, RV12 – 2 Stage Rotary Vane Pump, 3Ph 200-208V 50Hz 200-230V 60Hz IE2, RV12 – 2 Stage Rotary Vane Pump, 3Ph 380-415V 50Hz / 460V 60Hz, RV12 FX – 2 Stage Rotary Vane Pump, 1Ph 100/200V 50/60Hz JP, RV12 – 2 Stage Rotary Vane Pump, 1Ph 100/200V 50/60Hz JP, RV12 – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz EU, RV12 FX – 2 Stage Rotary Vane Pump, 1Ph 115/230V 50/60Hz EU

Cooling method

Air Cooling (forced – fan)

Power supply voltage

3Ph 380-415V 50Hz / 460V 60Hz, 3Ph 200-208V 50Hz 200-230V 60Hz IE2, 1Ph 115/230V 50/60Hz, 1Ph 100-220V, 1Ph 100/200V 50/60Hz

Connection inlet/outlet flange

DN 25 ISO-KF (NW25) / DN 25 ISO-KF (NW25), 489/158/225, 490/158/261
